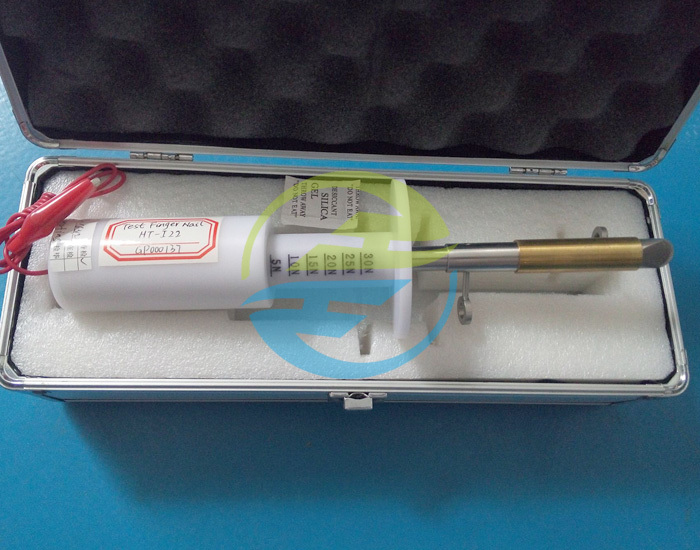

HT-I22 Model Test Finger Probe for Household Appliance and Electrical Safety Testing with IEC/UL Standards

Brand Name : HongCe

Model Number : HT-I22

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20 Sets per month

Delivery Time : 5 days

Packaging Details : Aluminum Box

Model : HT-I22

Probe length : 80mm

Exert pressure : 10N、20N、30N

Constitute : Fingertip, middle finger, finger base

Diameter : φ12

Reference to international standards : IEC 60335-1

Contact Now

Electric Shock Protection Test Finger Nail Probe for Safety Compliance Testing
IEC/UL Standard Test Finger Probe for Electrical Appliance Accessibility Verification
When it comes to electrical safety, even the smallest detail matters. The shape of a probe, the curve of a fingertip, the applied force—each plays a role in determining whether a product truly protects users from accidental contact.
The HT-I22 Electric Shock Protection Test Finger Nail Probe is crafted to simulate a human finger nail under specific test conditions. It is commonly used in conjunction with standardized test fingers to verify accessibility to live or hazardous parts within household appliances, consumer electronics, power tools, IT equipment, and lighting devices.
International Standards Compliance
  • IEC 61032 – Protection of Persons and Equipment by Enclosures
    • Test Probe 11, 12, 13 Requirements
    • Clause 6 – Accessibility of live parts
    • Annex A – Test probe specifications
  • IEC 60335-1 – Household and Similar Electrical Appliances
    • Clause 8.1 – Access to live parts
    • Clause 22 – Construction requirements regarding user contact
  • IEC 60950 / IEC 62368 – IT & Audio-Video Equipment Safety
    • Clause 4.1 – Accessibility test
    • Annex B – Articulated test finger and accessories
  • UL 507 / UL 982 / UL 1310 – Nail accessibility testing requirements
  • EN 60529 – IP Code Protection – Verification of accessibility to live parts during IP tests
Product Applications
  • Electrical safety laboratories
  • Household appliance manufacturers
  • Mobile phone and consumer electronics factories
  • Power tool manufacturers
  • Luminaire and lighting equipment testing
Operating Procedure
  1. Install the test probe securely in the fixture or handle.
  2. Position the electrical product according to the required test angle.
  3. Insert the test finger nail probe into any possible opening or gap.
  4. Apply the specified test force as defined in the relevant standard.
  5. Observe and record results—check whether hazardous parts are accessible.
  6. Repeat tests on all required test points based on the product structure.
  7. Evaluate compliance with applicable safety standards.
Product Specifications
HT-I22 Model Test Finger Probe for Household Appliance and Electrical Safety Testing with IEC/UL Standards
Model HT-I22
Probe length 80mm
Nail length 37°
Trial finger diameter Φ12
Apply pressure value 10N,20N,30N
Reference standard GB4706.1-2005 Figure 7, IEC60335-1 Figure 7
Product Detail
HT-I22 Model Test Finger Probe for Household Appliance and Electrical Safety Testing with IEC/UL Standards
